Plugin Explanation

This section provides detailed explanations of the various plugins and components available in the QWR Unity SDK for VROneEdu.

Player Plugin

Development Environment:

• Unity version: 2019.4.17 or later versions
• QWR SDK version: 0.8.1 (beta)/0.8.1b

Function Description:

Usage Limitation

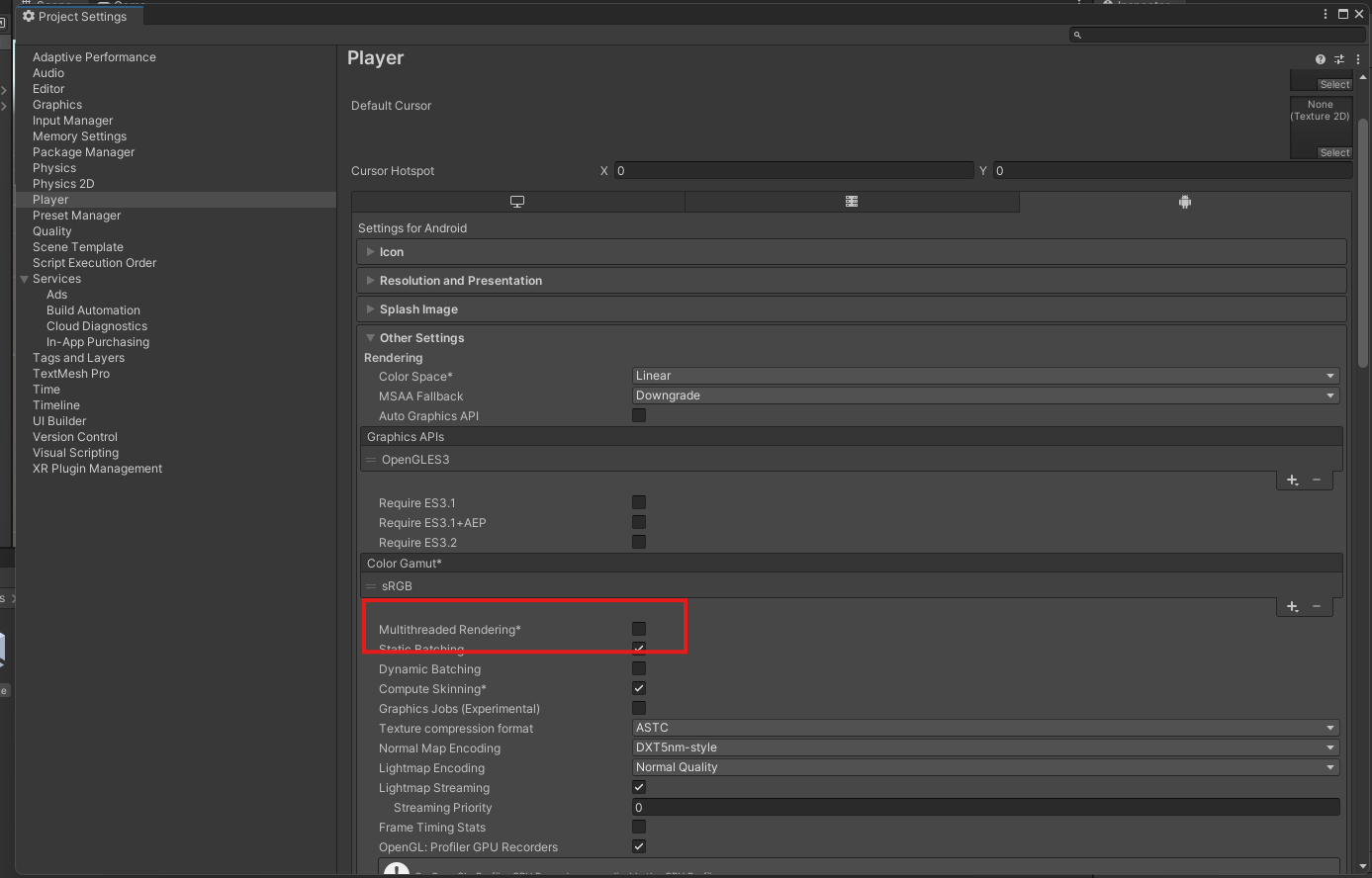

When using in Unity, you need to uncheck "Multithreaded Rendering" in Unity's PlayerSettings.

Setup Instructions

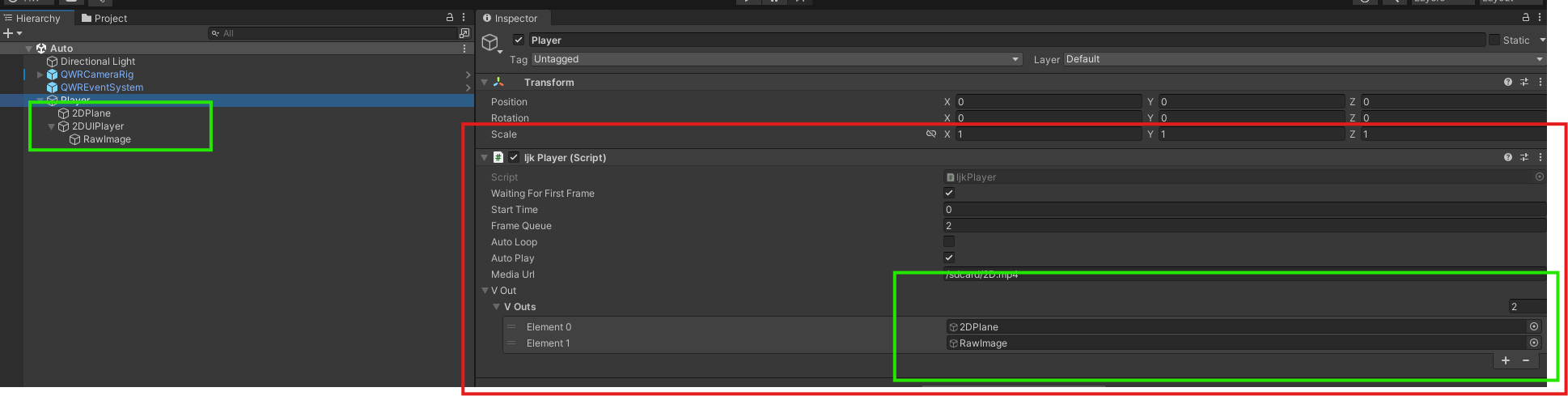

1. Enable AutoPlay: Check "AutoPlay," provide the video URL with "MediaUrl," and specify the video display container with "VOuts."

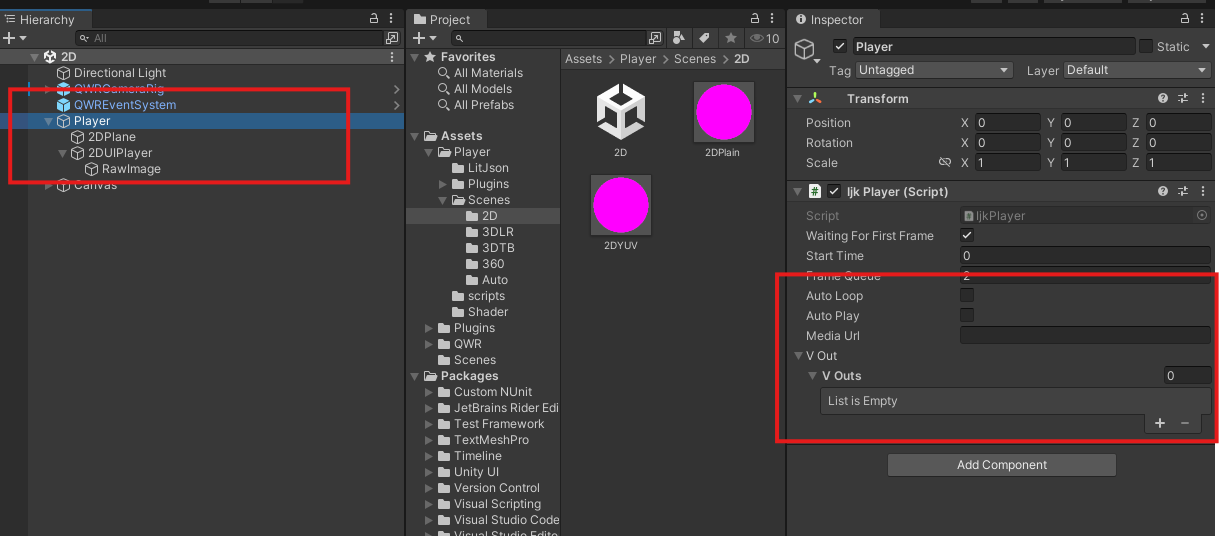

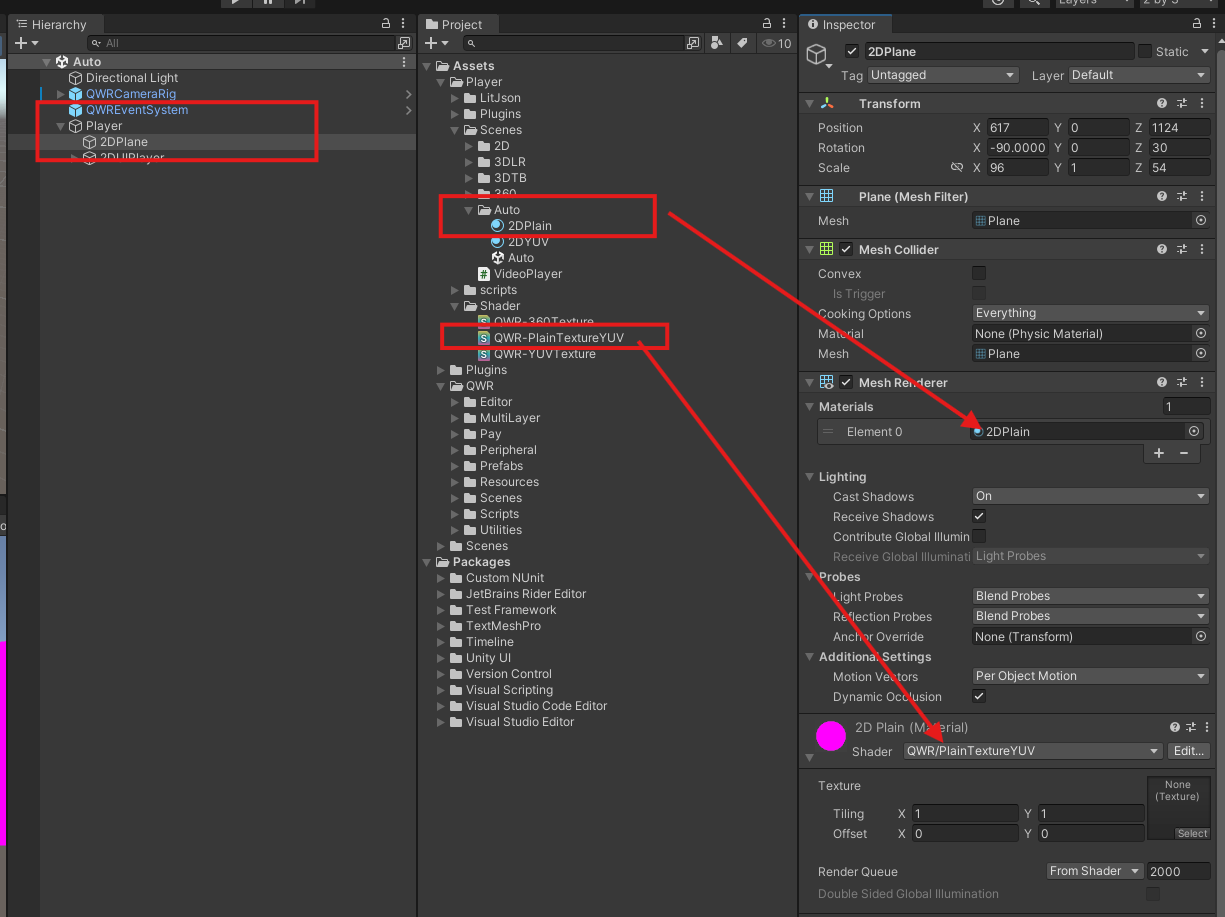

2. Configure Materials and Shaders: The video display container requires adding materials and shaders. It can be displayed on a Plane or RawImage by adding different shaders.

3. Add Scripts: Add a script and attach it to the respective video container. For auto playback, uncheck parameters and input values.

4. Create Control Script: Create a new script to control video playback and add the display container.


Function Description

The Player Plugin supports comprehensive video playback functionality:

• Duration Retrieval: Supports retrieving the total duration of the video and the current progress of the video
• Playback Control: Supports controlling video playback and pause
• Progress Adjustment: Supports adjusting the video playback progress
• Restart Functionality: Supports restarting the video from the beginning

Parameters

Parameter	Effect
videoUri	The URL of the video
tim	The start time of the video, default is 0
OnPreparedCallback	Callback for when the video is prepared
player.Duration	Get the total duration of the video
player.Current	Get the current progress of the video
player.Pause()	Pause the video
player.Resume()	Resume playing the video
player.Seek(tim)	Adjust the video progress, start playing from the beginning if tim=0

Implementation Example

using QWR.Player;

public class VideoPlayerController : MonoBehaviour
{
    public string videoUri;
    public float startTime = 0f;

    private QWRPlayer player;

    void Start()
    {
        // Initialize the player
        player = GetComponent<QWRPlayer>();
        player.videoUri = videoUri;
        player.tim = startTime;

        // Set up callback
        player.OnPreparedCallback = OnVideoPrepared;
    }

    void OnVideoPrepared()
    {
        Debug.Log("Video prepared. Duration: " + player.Duration);
    }

    public void PlayVideo()
    {
        player.Resume();
    }

    public void PauseVideo()
    {
        player.Pause();
    }

    public void SeekToTime(float time)
    {
        player.Seek(time);
    }

    public void RestartVideo()
    {
        player.Seek(0);
    }
}

Best Practices

Performance Optimization

• Use appropriate video formats for mobile VR (H.264, VP8)
• Consider video resolution based on target device capabilities
• Implement proper memory management for video textures

User Experience

• Provide clear visual feedback for video controls
• Implement smooth seeking with progress indicators
• Handle network connectivity issues gracefully

Educational Applications

• Use video content to enhance educational experiences
• Implement interactive elements synchronized with video playback
• Create assessment features based on video viewing progress

Troubleshooting

Common Issues

• Video not playing: Check that "Multithreaded Rendering" is unchecked in Player Settings
• Poor video quality: Verify video format and resolution compatibility
• Audio issues: Ensure proper audio codec support

Debug Tips

• Use Unity's Profiler to monitor video playback performance
• Check console logs for video preparation callbacks
• Test with different video formats and resolutions

---

The Player Plugin provides powerful video playback capabilities essential for creating rich multimedia VR experiences in educational applications.
